Fire Extinguisher Cabinet Roll Forming Machine Manufacturer

Machine Manufacturer For Making Red Color Steel & Galvanized Steel Fire Extinguisher Cabinet, Middle Panel, Bottom Panel.

Equipment for producting galvanized steel /mild steel fire extinguisher cabinets with different dimension available.

Red fire extinguisher cabinets & box production machine photo

1,  Fire extinguisher box roll forming machine technical parameters

Fire exguisher case production line process

Uncoiler →Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch → Bending enclosure (optional)→shear device (including knife)→ finished product rack

Roll Forming machine list

Uncoiler, Straightener

1,Type Manual Expansion

2,Parameter

1) Passive   discharge

2) Coil weight：<   2T

3) Coil inner D.：φ450mm-φ530mm

4) Max. Width.400mm

5) Thickness .0.4-1.6mm

6) Straightener roller :9 pcs

7) Power.1.5kw

Servo Feeder

3.1 Max. feeding width 400mm
3.2  Feeding thickess 0.4-1.6mm

3. 3  Motor , 1.3ＫＷ(Yaskawa)

Hydraulic hole punching system

3.1 Function：Hydraulic punch breach  (Mould 1 set)
3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure：16MPa
3.4 Hydraulic station：18.5KW（ Hydraulic punch hole/shear use same station）

A. Hydraulic punch for the panel gap.

B. Hydraulic punch for the knock down hole

C. Hydraulic punch for the ventilating hole.

Guide device

Main Forming machines  (Panel width adjustable)

5.1  Forming Roller：16 stations，and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel：T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 6-12 m/min。

5.4  Roller material：GCr15，overall quenching, hardness HRC56-62 ℃.
5.5  Motor power：7.5KW。
5.6  Main Roller ：Dia.75mm，45 #。
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.

5.10 Flat collect rack

5.11 Box Bending Machine (including mould)

Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.

Machinery main components of the brand:
PLC control system: Siemens
Inverter: Taiwan Shilin
Encoder: Omron
Touch screen: Siemens
Some components are Schneider brand devices.

Extinguisher box drawing design by solidworks.

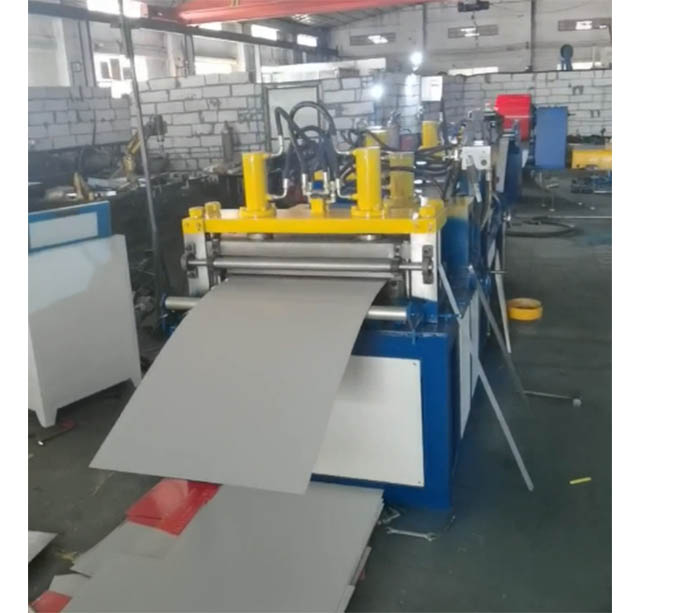

Fire extinguisher cabinet production line working for middle panel.

Devices completed extinguisher cabinet prodution line

 Steel extinguisher box machine accessories brand

Fire extinguisher enclosure roller former production line

Fire extinguisher cabinet middle panel production photo

Fire extinguisher box back panel blanking line.
